Brush lath with holder
The combination of materials is very flexible, resulting in a product with multiple applications and appearances. Brush strips are extremely suitable for use as a sealing element against moisture, water, dirt, and pests. But also for directing and guiding, transporting, pressing on, and keying / roughening.
Depending on the application and profile of the brush lath, the available lengths vary from a few centimeters to 6 meters. The width of the strip and the drilling pattern are also variable. In daily practice, it turns out that many problems often require the same kind of solutions, which is why we ensure that our standard brush strips are always in stock for you.
High-demand applications, which cause brush laths to wear above average, require a specially developed brush. For this purpose we have the brush laths with a C-profile in our product range. This brush is quick and easy to replace. The C-profile is only purchased once and fixed in position. The brush laths can be replaced by simply sliding them in and out of the profile. Besides the normal brush lath, you can choose from brush laths with a profile or from brush laths with an aluminium holder.
Models
The table below shows our standard models. Do you need a brush with different specifications? We are happy to help you with a custom-made brush. Even if you are not yet sure or want advice about a brush, you can contact the sales team.

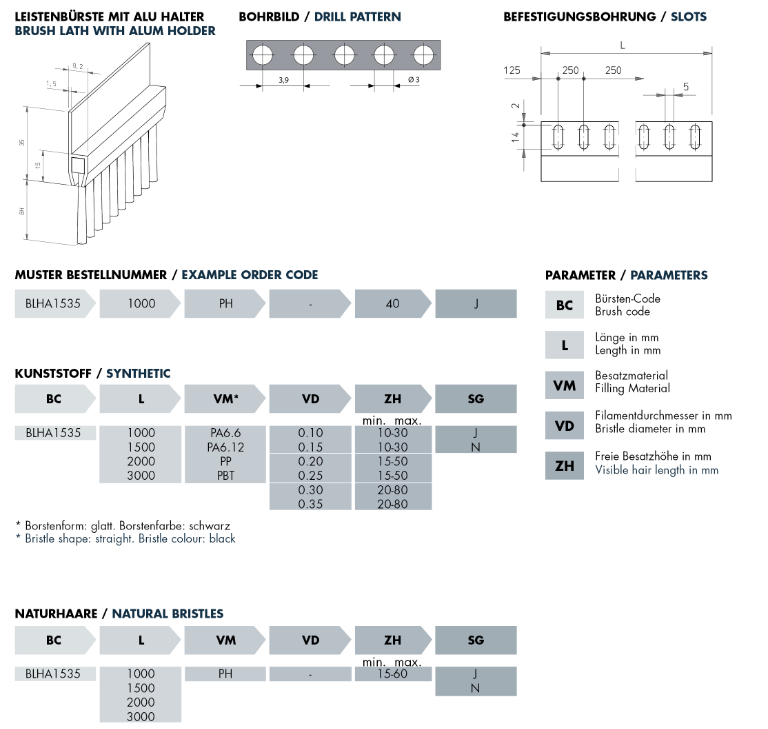

Parameters
- L – Length
- B – Profile width
- B1 – Profile holder width
- H – Profile height
- H1 – Profile holder height
- VM – Filling material
- VD – Bristle diameter
- ZH – Visible hair length
| Brush lath with holder | |||
| Article number | Dimensions (w x h) | Profile Type | |
| BLHA1535 | 15 x 35 | H-profile holder | |
| BLHA2045 | 20 x 45 | H-profile holder | |
| BLFA1530 | 15 x 30 | F-profile holder | |
| BLFA2040 | 20 x 40 | F-profile holder | |
| BLYA1520 | 15 x 20 | Y-profile holder | |
| BLYA2025 | 20 x 25 | Y-profile holder | |
| BLC2013 | 20 x 13 | Brush laths C-profile | |
| BLC2015 | 20 x 15 | Brush laths C-profile | |
| BLC2015R | 20 x 15 | Brush laths C-profile | |
| BLC2410 | 24 x 10 | Brush laths C-profile | |
| BLC2417 | 24 x 17 | Brush laths C-profile | |
| BLC2815 | 28 x 15 | Brush laths C-profile | |
| BLC3825 | 38 x 25 | Brush laths C-profile | |
Filling material
The filling material we use for your brush depends on your application, industry and product. Do you have questions about filling materials? Please feel free to contact.
| Filling materials | |||
| Abbreviation | Description | Advantages | |
| PA 6.12 | Polyamide 6.12 | Does not retain moisture, better resilience than nylon 6.6 | |
| PA 6.6 | Polyamide 6.6 | Suitable for industrial applications, heat resistant and high abrasion resistance | |
| PP | Polypropylene | Does not retain moisture, acid resistant, lower abrasion resistance than nylon 6.6 and 6.12 | |
Your success is our success
Find the right solution
Do you have questions about brush strips with profile holder or are you looking for a different solution? Contact us and we will help you further.
Brush lath with profile holder
Please enter your requirements and data below. We will be happy to advise you on a brush solution that perfectly suits your needs.
