Quick Chain

Quick Chain

The brush belt Quick Chain is constructed from individual links. The individual links are available in 100 and 200 mm widths. This allows for the creation of a brush belt in almost any desired length and width. The Quick Chain system is characterized by its simple assembly and disassembly options. In case of localized wear, a worn brush element can be replaced. The Quick Chain brush belts can be used vertically, horizontally, or at an angle. These belts can transport a variety of products damage-free, quietly, and efficiently. You can think of items such as eggs, fruit, and crates. Depending on the application, the filling is determined; the number of bundles, the diameters of the fibers, and the fiber length.

• Fully customized for your application
• Use both horizontally, vertically and at an angle possible
• Quickly and easily replace worn brush elements

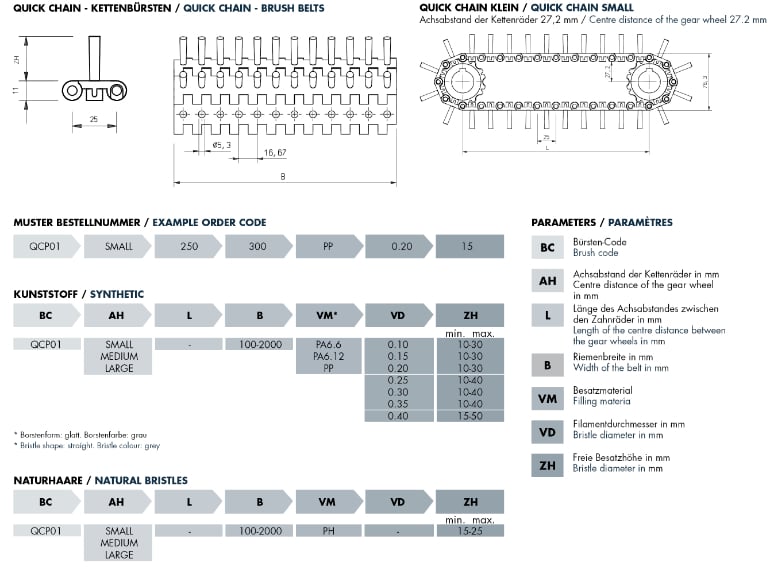

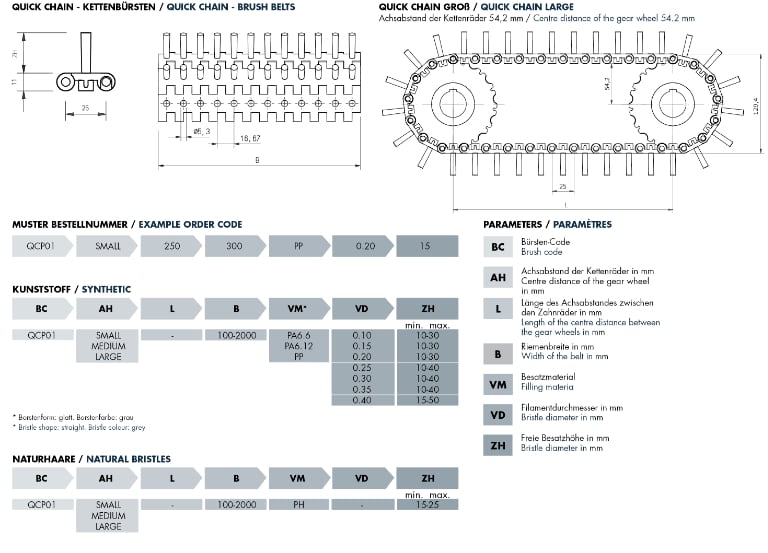

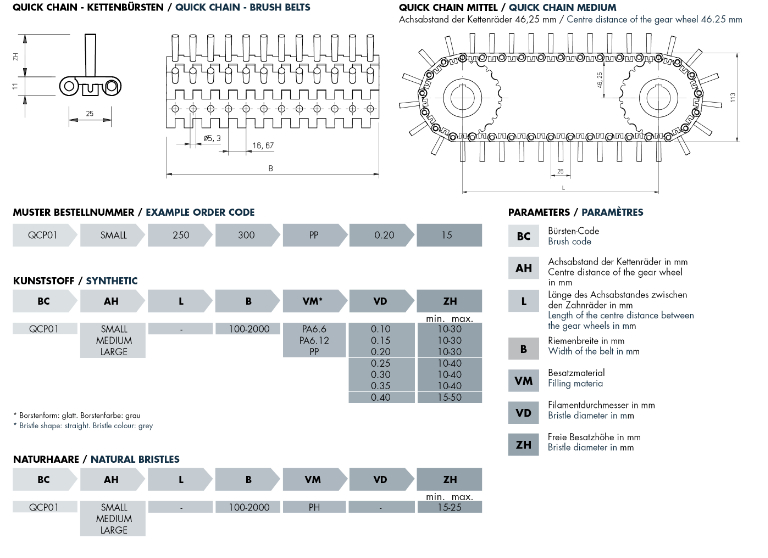

Models

The table below shows our standard models of the Quick Chain. Do you need a brush with different specifications? We are happy to help you with a custom-made brush. Even if you are not yet certain or would like advice about a brush, you can contact the sales team.

Abbreviations

Filling material

The filling material we use for your brush depends on your application, industry and product. Do you have questions about filling materials? Please feel free to contact.
