Brush belt flat
The core of brush belts flat consists of chrome leather (whether reinforced with plastic or not). A larger width is possible in this form-fitting version. If necessary, steering strings can be used at the bottom. Also this brush belt can be supplied endless or on a roll. A difference compared to the Brush belt V-string is that the brush occupation of the brush belts flat can be denser or fuller.

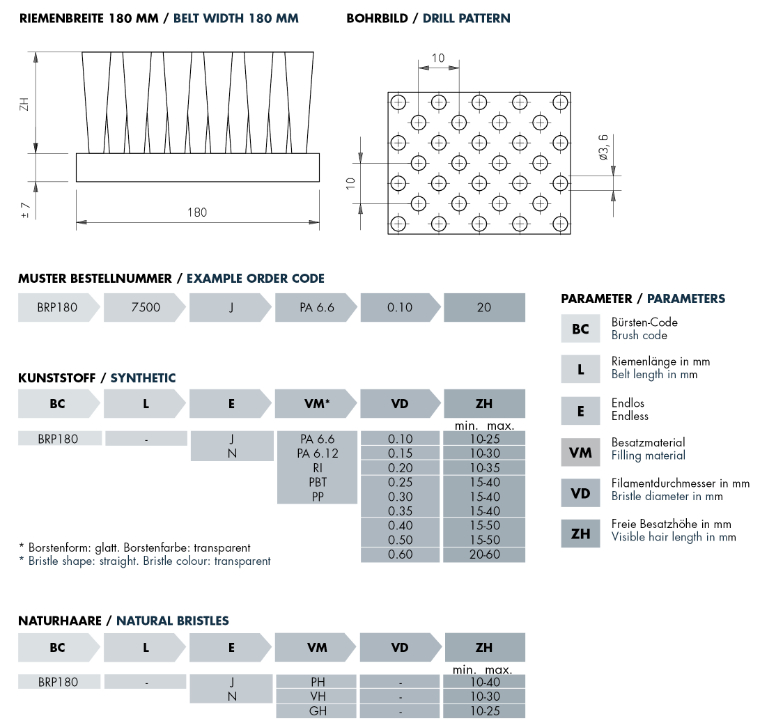

Models
The table below lists our standard models of Brush belt flat. Do you need a brush with different specifications? We are happy to help you with a custom-made brush. Also, if you are still unsure or want advice on a brushing, you can contact the sales team at any time.
Parameters
- B – Belt width
- L – Length
- E – Endless
- VM – Filling material
- VD – Bristle diameter
- ZH – Visible hair length
Filling material
The Filling material we use for your brushing depends on your application, industry and product. Do you have questions about filling materials? Please feel free to contact.
| Filling material | |||
| Abbreviation | Description | Advantages | |
| GH | Goat hair | Extremely soft fiber for delicate work | |
| PA 6.12 | Polyamide 6.12 | Does not retain moisture, better resilience than nylon 6.6 | |
| PA 6.6 | polyamide 6.6 | Suitable for industrial applications, heat resistant and high abrasion resistance | |
| PBT | Polyester | Heat resistant, abrasion resistant, does not retain moisture and certified for food use | |
| PH | Horse hair | Flexible fiber for light brushing (e.g., for cleaning plastic strips) | |
| PP | Polypropylene | Does not retain moisture, acid resistant, lower abrasion resistance than nylon 6.6 and 6.12 | |
| RI | Rilsan | Does not retain moisture, very high abrasion resistance | |
| VH | Pig bristles | Harder than horsehair | |
Your success is our success
Find the right solution
Do you have questions about the flat brush belts or are you looking for another solution? Contact us and we will help you further.
Brush belt flat
Please enter your requirements and data below. We will be happy to advise you on a brush solution that perfectly suits your needs.
